Create an Assembly Project

Creating an Assembly project is pretty much the same as createing a C project.

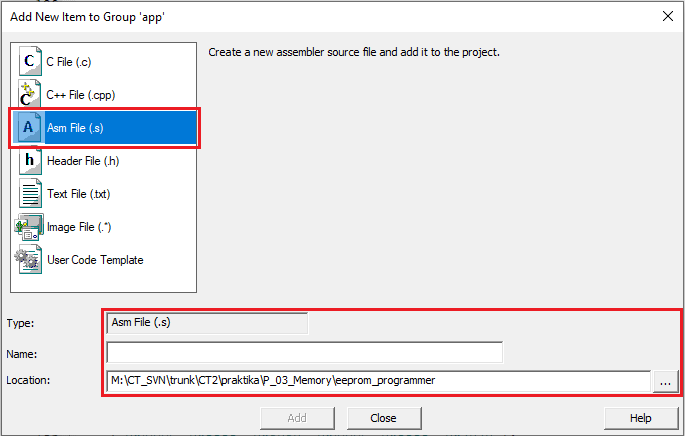

To create a “normal” Assembly project you just have to add Assembly files to the project instead of C files.
The example code bellow shows a minimal main procedure.

main.s

                 AREA myCode, CODE, READONLY

                 THUMB

ADDR_LED         EQU    0x60000100
ADDR_DIPSW       EQU    0x60000200

main             PROC
                 EXPORT main

                 LDR    R0, =ADDR_LED
                 LDR    R1, =ADDR_DIPSW
loop             LDR    R2, [R1, #0]
                 STR    R2, [R0, #0]
                 B      loop

                 ENDP

                 ALIGN
                 END

The difference between a normal an d a minimal Assembly project is, that for the minimal project you don't need to choose a runtime component. This means you have to take care of every aspect yourself!
The example code bellow shows a very minimal setup (without access to the CT Board input or output peripherals).

main.s

                AREA RESET, DATA, READONLY
                EXPORT __Vectors
__Vectors
                DCD  0x2002ffff             ; top of stack
                DCD  Reset_Handler          ; reset vector


                AREA myCode, CODE, READONLY

                THUMB

CONST_VALUE_X   EQU  12


                ENTRY
Reset_Handler

; -- Your code belongs here ---------------------------------

                LDR  R0, =0
                LDR  R1, =CONST_VALUE_X
loop            ADD  R0, R1
                B    loop

; -- Your code ends here ------------------------------------

                END
